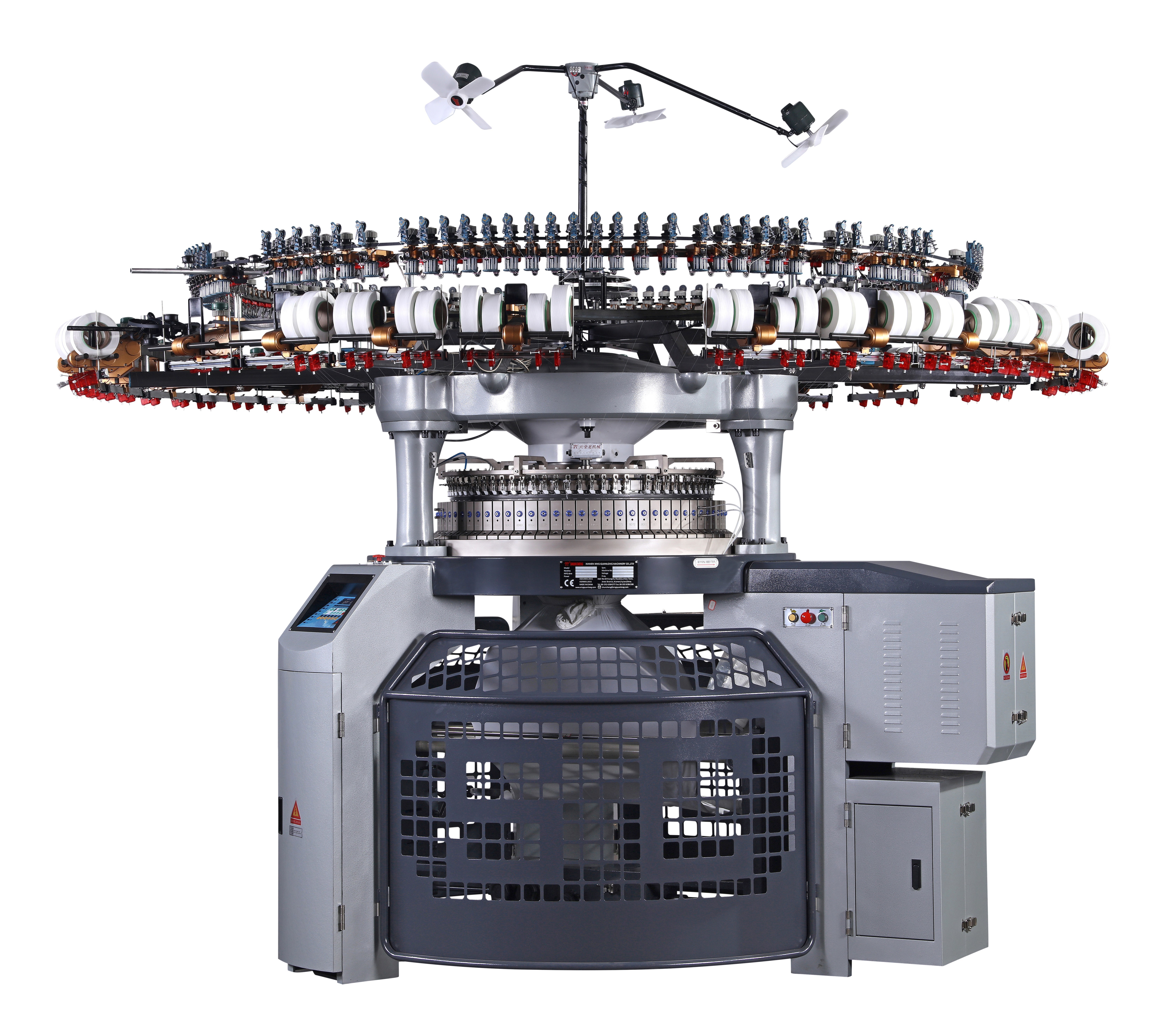

Double Jersey Interlock/Rib Circular Knitting Machine
Model：
SC-DD/SC-DL
Diameter：
8’’- 60’’
Gauge：
9G- 50G
Feeder：
2F/inch- 3.6F/inch
Classification:
Product Introduction
- Description
- Applied Fabric
- Features
- Specification
-
- Commodity name: Double Jersey Interlock/Rib Circular Knitting Machine
- Model：: SC-DD/SC-DL
- Diameter：: 8’’- 60’’
- Gauge：: 9G- 50G
- Feeder：: 2F/inch- 3.6F/inch
SC-DD/SC-DL
Double Jersey Interlock/Rib Circular Knitting Machine
technical data
model
diameter
gauge
feeders
SC-DD/SC-DL
14”-44”
9G-50G
2F/inch- 3.6F/inch
- High speed double jersey circular knitting machine can help ensure the quality of the fabrics with its superior performance, high volume of production and high precision structure.
- The machine can produce the fabrics with changing patterns by adopting the cylinders which are made of Japanese special alloy with the quality of heat resistance and abrasion resistant
- The machine adopt two track dial and four track cylinder or four track dial and six track cylinder.
- According to the changeable of the needle and cam, it can produce many patterns of fabrics such as mini jacquard、sandwich fabric、interlock fabric etc.; Equipped with spandex can even produce different kind of fabric which used as the material for haute couture.
-
Technical characteristics:
1.Knitting machine are unified by the production of stable frame;
2.The gear rack drive is immersed in oil bath so that the operation noise is small;
3.Knitting lubrication regulation by fixed quantity automatic spraying lubrication oiler and blower;
4.Advanced computerized control of inverter of Japan;
5.Double layer positive storage yarn feeder;
6.Automatic stop motion or knitting needle detection and fabric floating detection;
7.Dust fan to clean the top and twisting part of the machine so that the yarn feeder can be kept clean;
8.With automatic stop counter adoptable to different length of fabric roll.The spinning part of this machine has the following major design features:
Ripped open type knitting machine is designed with four-tracks and four kinds of knitting needles. One kind of sinker is used in the whole runway of sinkers. The high feed yarn mouth is reliable and harmless to the knitting needles.
